Model NO.: FCHT
Keyword: Straight Fluting Tap
Overall Length: 58.2 Mm
Flute Length: 13 Mm
Flute: 3
Shank Diameter: 4 Mm
Tang: 3.5 Mm
Coating: TiCN/Ti/ No Coated
Type Of Tap: Straight Fluting Tap
Standard: Metric
Application: Motorize
Type Of Die: Just Taps
Material: Hssg
Specification: M4
Trademark: HEGONG/OEM

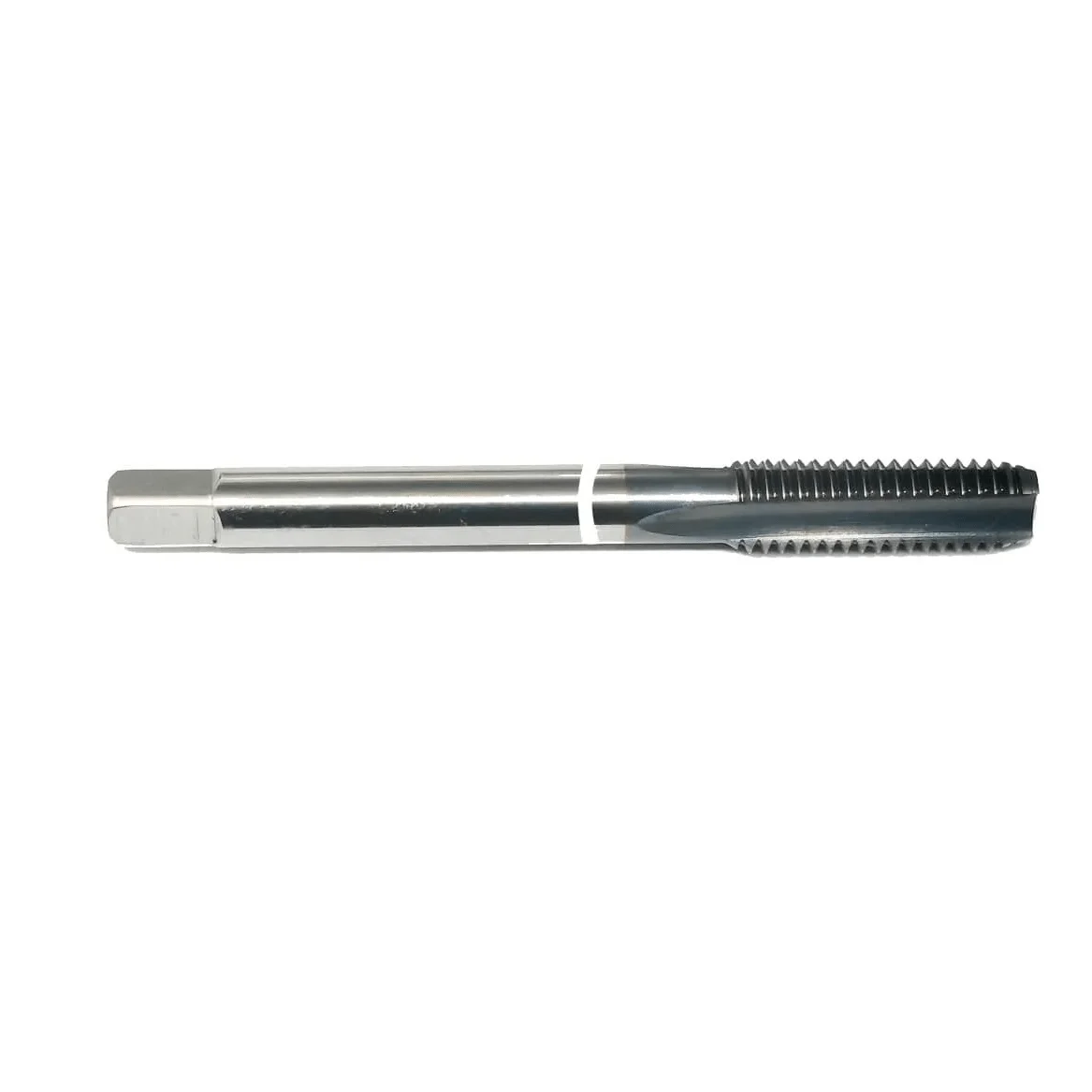

Cast Iron Specific Tap
1. Ticn Coating:
Proprietary coating technology enhances impact resistance, reducing chipping and edge breakage during interrupted cutting.
2 .New HSSG material:
Core material harder than HSSE(63-65 HRC), balancing wear resistance and shock absorption.
3. Multi-Standard Compatibility:
Supports ISO metric (M), UNF/UNC, and BSW thread standards for global applications.
4 . High-Speed Machining:
Suitable for dry or wet cutting at speeds up to 10 m/min (cast iron).
TYPICAL APPLICATION SCENARIOS
Automotive Manufacturing: Tapping engine block bolt holes (cast iron) and stainless steel exhaust manifolds.
Heavy Machinery: Threading cast iron pump housings and hydraulic valve blocks in construction equipment.
Food Processing Equipment: Corrosion-resistant threading of SUS304 stainless steel flanges and valves.
Mold & Tooling: Precision threads in alloy steel (SCM440) inserts for injection molds.
General Engineering: High-mix, low-volume CNC machining of cast iron and ductile iron parts.

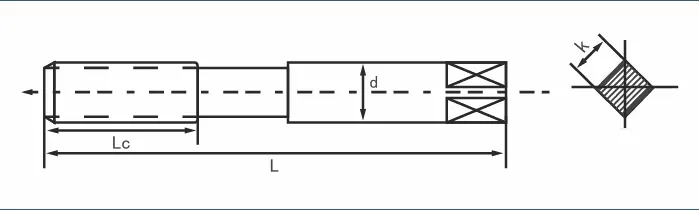

| Size | L | Lc | L1 | d | k | Flute |
| M3 | 48.00 | 11.00 | 7.00 | 3.15 | 2.50 | 3 |
| M4 | 58.2 | 13 | 8 | 4 | 3.15 | 3 |
| M5 | 64.5 | 16 | 9 | 5 | 4 | 3 |
| M6 | 66 | 19 | 11 | 6.3 | 5 | 3 |
| M8 | 72 | 22 | – | 6.3 | 5 | 3 |
| M10 | 80 | 24 | – | 8 | 6.3 | 4 |
| M12 | 89 | 29 | – | 9 | 7.1 | 4 |
Hegong specializes in high-quality threading tools, including machine taps, hand taps, straight flute taps, spiral flute taps, spiral point taps, and forming thread taps, serving global markets with precision and reliability.
For inquiries about our products or pricelist, please leave your email to us and we will be in touch within 24 hours.
