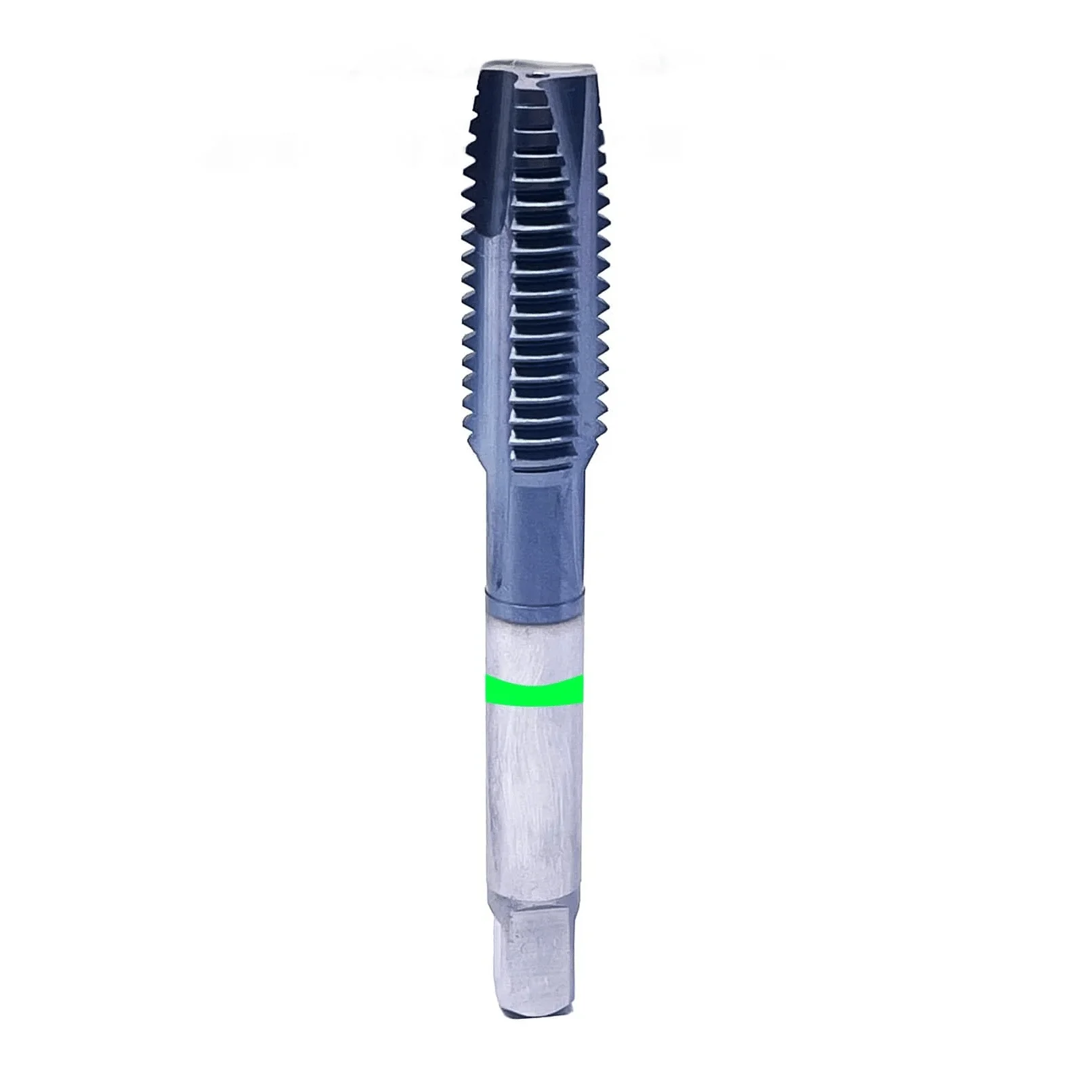

Model NO.: HNSP
Chamfer Type: C3 (3-5 Threads)
Flute Type: Spiral Flute
Coating: Ticn
Limit: P2
Flute: 3
Overall Length: 52 Mm
Flute Length: 13 Mm
Shank Diameter: 5 Mm
Tang: 4 Mm
Type Of Tap: Spiral Fluting Tap
Standard: Metric
Application: Motorize
Transport Package: Standard Packaging Or Customized
Specification: M4*0.7
Trademark: HEGONG/OEM
Carbon Steel Specific Taps
Universal Spiral Flute Design:
A 40° Spiral Angle optimizes chip evacuation for both blind holes and through holes, making it adaptable to various materials.
Pitch Geometry reduces cutting resistance and prevents chip jamming.
Advanced Substrate & Coating:
New HSSG material: Enhances wear resistance and thermal stability, with hardness exceeding HSSE (65 HRC).
Tic Coating: Reduces friction by 20% and extends tool life by 50% compared to uncoated taps.
Multi-Material Compatibility:
Ideal for carbon steel (SCM440), alloy steel, and various materials.
Suitable for dry cutting or minimum lubrication (MQL) machining.
High-Speed Machining:
Supports CNC operations up to 15 m/min.
TYPICAL APPLICATION SCENARIOS
Automotive Components: Threading engine brackets, gearbox housings, and suspension parts made of mild steel (e.g., AISI 1018/1045).
Construction & Infrastructure: Tapping structural steel beams, fasteners, and metal frames for buildings and bridges.
General Machinery Manufacturing: Producing hydraulic valve blocks, pump bodies, and shaft couplings in carbon steel (e.g., S45C).
Metal Fabrication Shops: High-speed CNC machining of custom brackets, fixtures, and jigs in low-to-medium carbon steel.

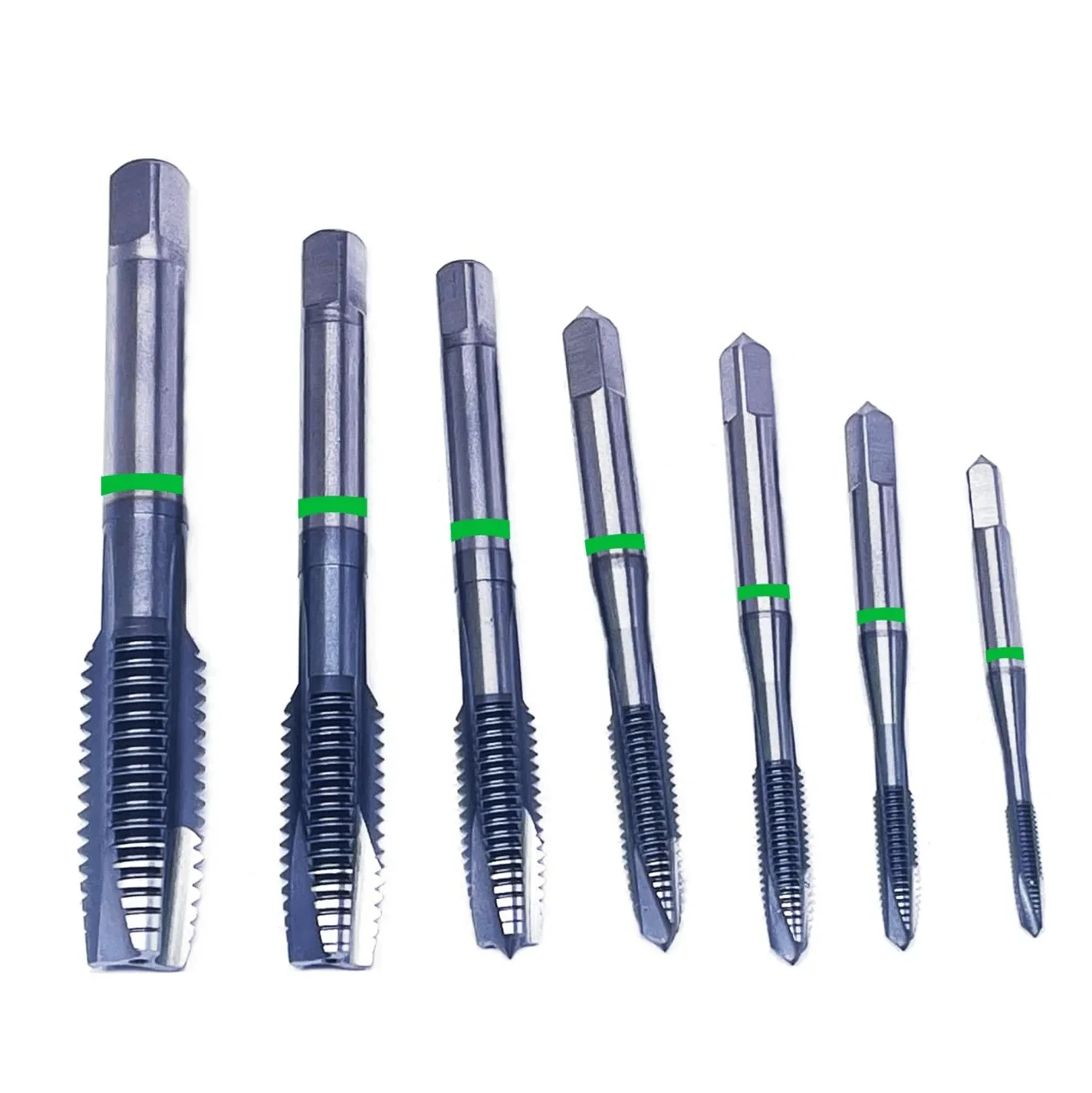

| Size | L | Lc | Limit | d | k | Flute |
| M2*0.4 | 40 | 9.5 | P1 | 3 | 2.5 | 2 |
| M2.5*0.45 | 44 | 9.5 | P1 | 3 | 2.5 | 2 |
| M3*0.5 | 46 | 11 | P2 | 4 | 3.2 | 3 |
| M4*0.7 | 52 | 13 | P2 | 5 | 4 | 3 |
| M5*0.8 | 60 | 16 | P2 | 5.5 | 4.5 | 3 |
| M6*1 | 62 | 19 | P2 | 6 | 4.5 | 3 |
| M8*1.25 | 70 | 22 | P2 | 6.2 | 5 | 3 |
| M10*1.5 | 75 | 24 | P2 | 7 | 5.5 | 3 |
| M12*1.75 | 82 | 29 | P2 | 8.5 | 6.5 | 3 |
| M14*2 | 88 | 30 | P2 | 10.5 | 8 | 3 |
| M16*2 | 95 | 32 | P2 | 12.5 | 10 | 3 |
| M18*2.5 | 100 | 37 | P3 | 14 | 11 | 4 |
| M20*2.5 | 105 | 37 | P3 | 15 | 12 | 4 |
| M22*2.5 | 115 | 38 | P3 | 17 | 13 | 4 |
| M24*3 | 120 | 45 | P3 | 19 | 15 | 4 |
