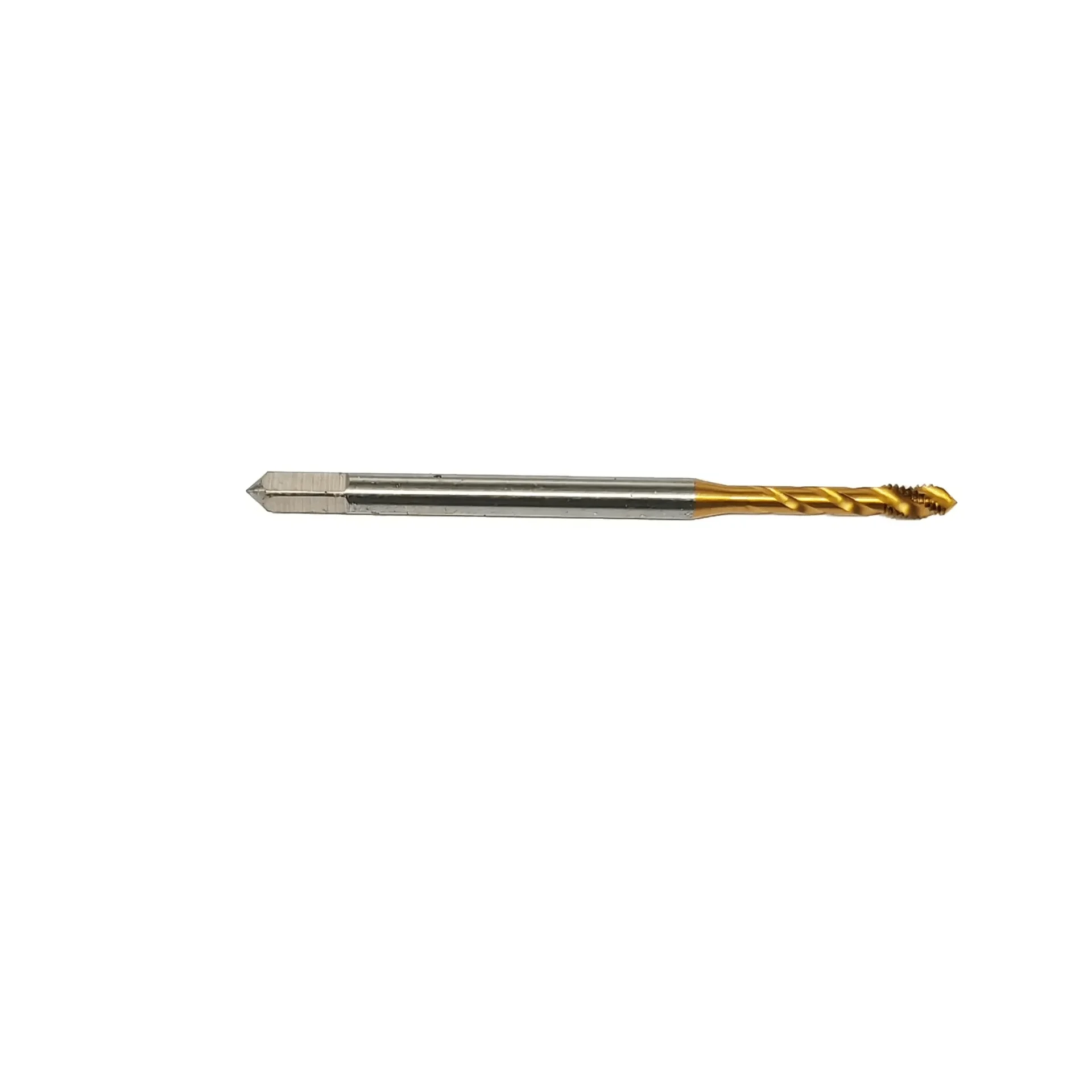

Machine Tap DIN376 Thread Tap

DIN376 Straight Flute Tap

Metric Thread Compliance:
Designed for DIN 376 standard metric threads (e.g., M8×1, M10×1.25), ensuring high-precision thread profiles.

Straight Flute Design:
Chip Evacuation: Optimized for both through holes and blind holes, threading in continuous machining operations.
Rigidity: Superior stability compared to spiral taps, ideal for hard materials.

Material & Coating:
HSS-E (High-Speed Steel with Cobalt): Hardness up to 63-65 HRC, enhanced wear resistance for long tool life.
Optional TiN/TiCN Coating: Reduces friction and extends durability in high-temperature applications.

High-Speed Machining:
Suitable for CNC machines and automatic lathes at speeds up to 15 m/min.

Thread Quality:
Ground Thread Profile: Achieves 6H tolerance class for critical applications.

TYPICAL APPLICATION SCENARIOS

Precision Engineering:
Threading hydraulic valve blocks, precision gears, and bearing housings in alloy steel (e.g., 42CrMo).

Automotive Manufacturing:
Tapping engine cylinder head bolts (threads for high clamping force) and transmission shafts.

Heavy Machinery:
Producing high-strength fasteners and flange connections in carbon steel (e.g., S45C).

Aerospace Components:
Threading landing gear parts and actuator systems requiring DIN standard threads.

General Metalworking:
High-volume production of metric threaded components in workshops with automated equipment.

Product Parameters
